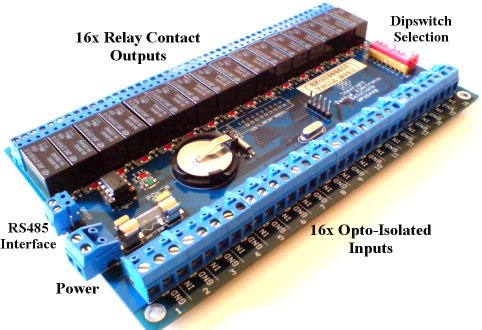

The MULTI-IO is a 16Channel Opto-Isolated Input and Relay Output Module with a vast range of build in RS485 programmable algorithms. These algorithms make the module capable of handling and performing an extensive range of functions, making the module a powerful Alarm and Building Management Module



MULTI-IO	File Size=753kByte	Download Now
Data Sheet	Last Updated:	27 July 2009

MULTI-IO	File Size=1.852MByte	Download Now
Broshure	Last Updated:	27 July 2009

Technical Information:

Module Size LxW(Incl. Connectors LxWxH)	170mm x 101mm (174mm x 101mm x 14mm)
Weight	240g
Power Supply	9 to 15VDC@340mA(Max) Polarity and Surge Protected
Temperature and Humidity	-40 to 70°C with up to 90% Relative Humidity
Communication Interfaces	RS485
Rs485 Data RX and TX LED	Yes
RS485 Interface	2400 to 115200 Baud
Number of Opto-Isolated Inputs	16
Relay Contacts Available	16 Normaly Open/ Common /Normaly Closed
Event History	5,000 - Expandable
Events Consist of	Input Activation and De-activation, Relay Output Activation and De-activation, Power Events
Non-Volatile Memory	Yes
Liquid Crystal Display Interface	Yes - Optional
Reflex Programming and Activation	Yes - Input and Software Active Reflex - up to 90. Functions include: Toggle, Continuous- and Delayed Active Output Functions
Time Zones	Yes - Daily and Weekly Time Zones, 5 to 9 Intervals
Time Zones on Relays	Yes - Relays are Automatically Control using Time and Date
Input Status Programming	Yes - All Inputs could be Individualy Programmed to be NO or NC
Input Delay Programming	Yes - All Inputs could be Individualy Programmed to have a Delay before becoming active
Remote Monitoring and Control of IO	Yes - All Inputs and Outputs could be monitored and controlled by remote software
Holiday Definitions	Yes - Holidays could be programmed to be used in the Time Zone programming and control
