Description:

The MONOLOG is a Single Door Stand-Alone Access Control and Door Alarm Controller with Keypad based Programming Features.

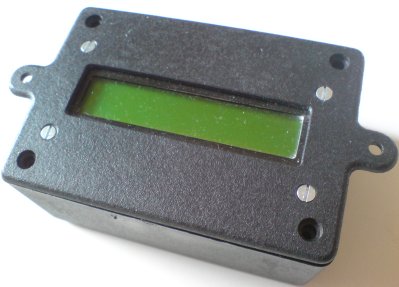

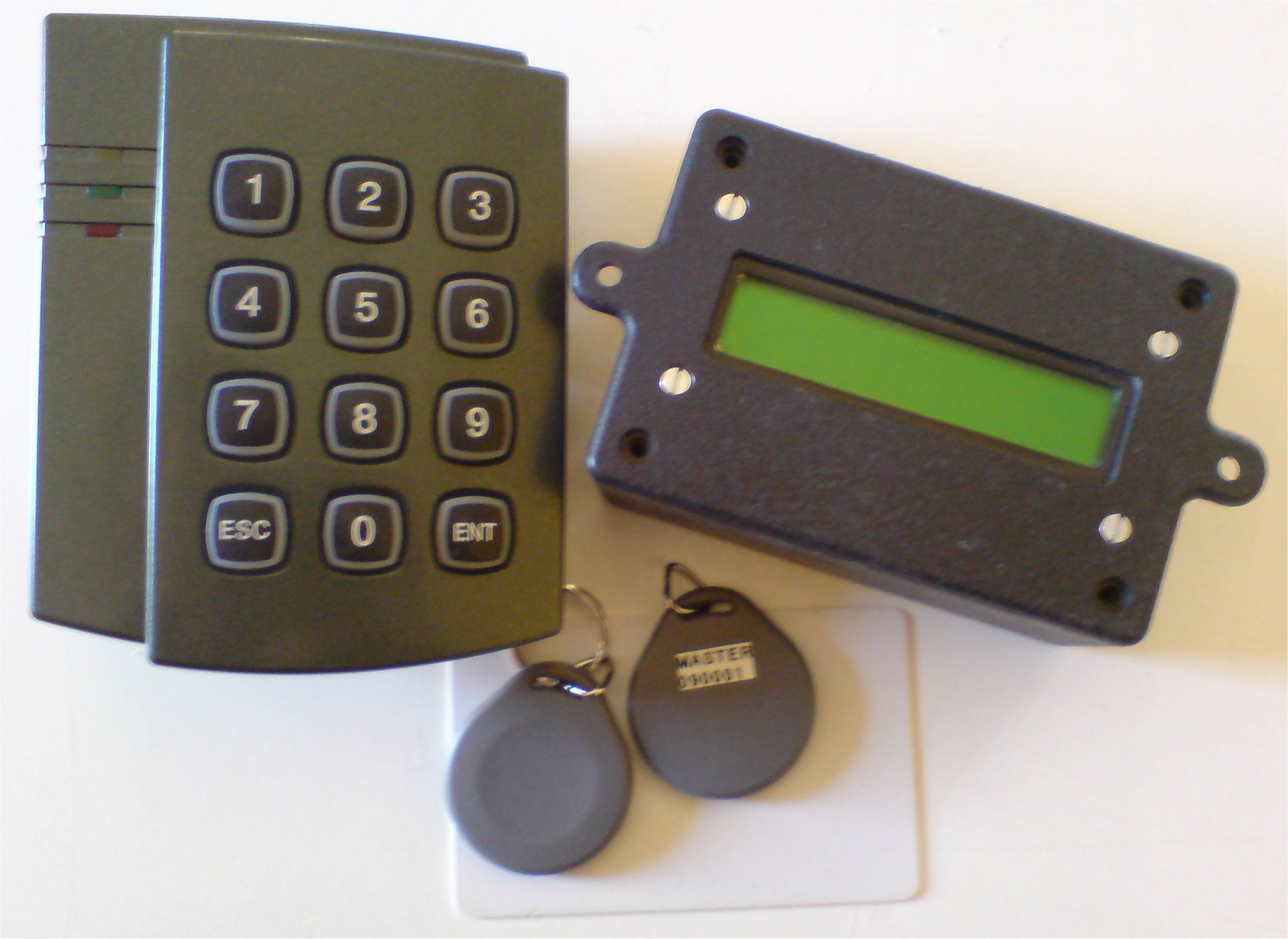

The Unit are available with or without the LCD Module and require the Reader with Keypad for Programming of the Functions.

MONOLOG	File Size=573kByte	Download Now
User Manual	Last Updated:	24 August 2009

Technical Information:

Module Size LxWxH	95mm x 66mm x 41mm
Mounting Lips Length and Hole Data	118mm Total - 106mm Hole to Hole - 3.6mm Dia Holes
Weight	120g - with LCD, 92g - without LCD
Power Supply	9 to 15VDC@180mA(Max) Polarity Protected
Temperature and Humidity	-40 to 70°C with up to 90% Relative Humidity
Reader Interface	26Bit Weigand Interface
Keypad Required	Yes - For the Configuration of all functions.
Feedback	Yes - Using the Readers built-in LED and Buzzer
Amount of Cards	1000
Door Alarm	Yes - With Programmable Alarm Functions
Door Control Output	Yes - Relay Contact (NO and NC available)
Alarm Output	Yes - Relay Contact (NO and MC available)
Master Tag	Yes - Required with 6 Digit PIN Code to Enter Menu Functions
