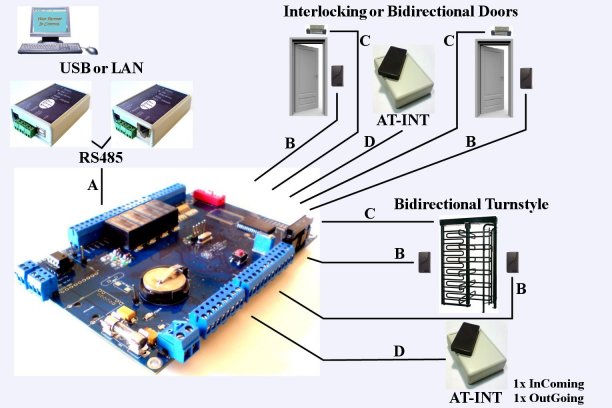

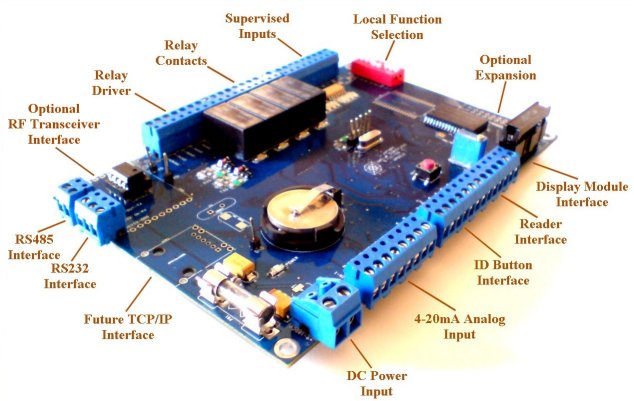

The MOD-LOG is a 4Door Access Control, Asset Management, Alarm and Event Controller with TCP/IP and RS485 Interface with a re-configurable 4port 4to20mA Measurement and control interface for the use in a wide variety of applications ranging from normal access control to total Building with Access and Asset Management.
| Module Size LxW(Incl. Connectors LxWxH) |
145mm x 98mm (145mm x 102mm x 17mm) |
| Weight |
150g |
| Power Supply |
9 to 15VDC@300mA(Max) Polarity and Surge Protected |
| Temperature and Humidity |
-40 to 70°C with up to 90% Relative Humidity |
| Communication Interfaces |
10BaseT Ethernet TCP/IP Connection and RS485 |
| Number of Card Readers |
4x Card Readers |
| Card Reader Format |
26 to 32Bit Auto Detect Weigand Format |
| Number of ID Button Readers |
4x Dallas ID Button Interface Format |
| Number of Asset Tag Readers |
4x Custom 26Bit AT-INT Readers |
| Readers Similtainiously Available |
4x Card, 4x ID Button, 4x AT-INT |
| Distance from Readers to MOD-LOG |
100 meters |
| Door Interlocking |
Yes |
| Door Forced and Left Open Alarm |
Yes with Individual Adjustable Timescales |
| Remote Door Open |
Yes |
| Time Zone Dependant Door and Access Control |
Yes |
| Anti-Passback |
Yes |
| Escort Access |
Yes |
| Supervisor Card Control |
Yes |
| Access Levels |
Yes |
| Access Criteria |
Card Only, Card and Pin, Pin Only |
| Number of Access Card Holders |
10,000 - Expandable |
| Number of Asset Tags |
5,000 |
| Total Event History |
49,000 |
| Card Start and End Validation |
Yes - Auto Start and End using Date |
| Local Reflex on Card Access |
Yes |
| Card Credit |
Yes |
| Events Consist of |
Unknown, Granded, Prohibited, Inputs, Relays, Asset Events, Power Events |
| Non-Volatile Memory |
Yes |
| Liquid Crystal Display Interface |
Yes |
| Low Power RF Transceiver Interface |
Yes - Optional |
| Fibre Optic Interface |
Yes - Optional |
| Rs485 Data RX and TX LED |
Yes |
| RS485 Interface |
2400 to 115200 Baud |
