Description:

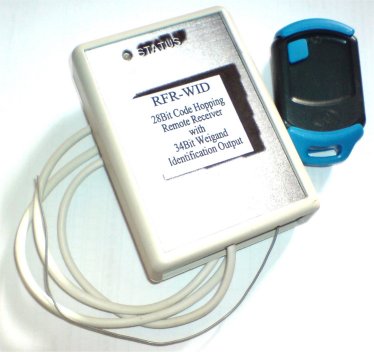

The name RFR-WID stands for Radio Frequency Receiver - Weigand Identification.
The RFR-WID are used in a Access Control System in conjunction with a Access Controller for the control and management of Access and Access Levels.

RFR-WID	File Size=329kByte	Download Now
Data Sheet	Last Updated:	5 October 2009

RFR-WID	File Size=344kByte	Download Now
User Manual	Last Updated:	5 October 2009

Technical Information:

Module Size LxWxH	92mm x 66mm x 28mm
Weigand and Power Cable Lenght	0.5m 4-Core Cable
Weight	89g
Power Supply	9 to 15VDC@180mA(Max) Polarity Protected
Temperature and Humidity	-40 to 70°C with up to 90% Relative Humidity
RF Receiver Interface	433.92MHz UHF Receiver
Transmitter Frequency Stability	0.032ppm/°C 100ppm year.
Receiver Sensitivity	-95dBm
Amount of Transmitters per Receiver	Unlimited
Status LED	Yes - Indicating Power and Reception of Data
Identification Interface	34Bit Standard SIA Weigand Interface
Wall or Panel Mounting Clip	Yes - 2x 3mm to 4mm Countersunk Screws
IP Rating on Transmitter and Receiver	IP54 - Dust Protected, Splash Proof
