LAN-INT and USB-INT

LAN-INT USB-INT Image1 Description:

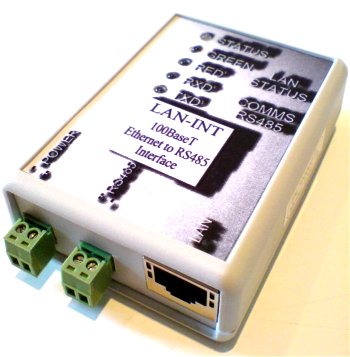

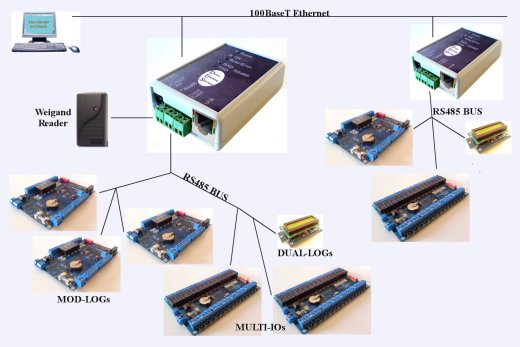

The LAN-INT is a 10BaseT Ethernet Local Area Network to RS485 Interface. The LAN-INT is used for the connection between a Host PC and the system over a local network or using the Internet to connect to a remote system.

LAN-INT File Size=733kByte Download Now
Data Sheet Last Updated: 10 August 2009
LAN- & USB-INT File Size=2.85MByte Download Now
Broshure Last Updated: 27 July 2009
Technical Information:
Module Size LxWxH 92mm x 66mm x 28mm
Module Size with Connectors LxWxH 99mm x 66mm x 28mm
Weight 102g
Power Supply 9 to 15VDC@180mA(Max) Polarity and Surge Protected
Temperature and Humidity -40 to 70°C with up to 90% Relative Humidity
LAN Interface 10BaseT Ethernet UTP RJ45-8Pin
Embedded Webpage Yes - For the Configuration of all functions.
IP Address Configurable over the network
Module Status LED Yes
LAN Status LED Yes
Rs485 Data RX and TX LED Yes
RS485 Interface 4800 to 57600 Baud
Wall or Panel Mounting Clip Yes
LAN-INT Arch1

USB-INT USB-INT Image1 Description:

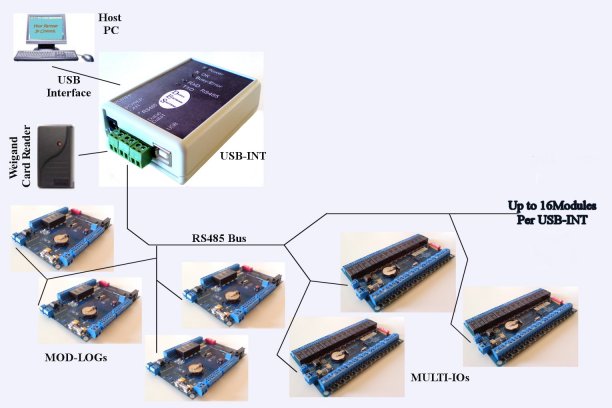

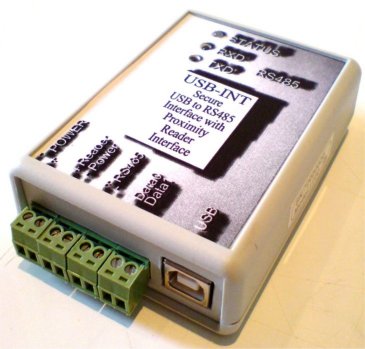

The USB-INT is a USB to RS485 Interface with a build-in 26 to 32Bit Weigand Interface. This interface can be used to read the data directly from a standard Proximity Card Reader. The USB-INT is used to control and manage the system and to allocate new cards for employees.

USB-INT File Size=723kByte Download Now
Data Sheet Last Updated: 27 July 2009
LAN- & USB-INT File Size=2.85MByte Download Now
Broshure Last Updated: 27 July 2009
Technical Information:
Module Size LxWxH 92mm x 66mm x 28mm
Module Size with Connectors LxWxH 99mm x 66mm x 28mm
Weight 95g
Power Supply 9 to 15VDC@150mA(Max) Polarity and Surge Protected
Temperature and Humidity -40 to 70°C with up to 90% Relative Humidity
USB Interface USB2 Compliant Full Speed
USB Connector USB B-Type
Module Status LED Yes
RS485 Data RX and TX LED Yes
RS485 Interface 2400 to 115200 Baud
RS485 Protection Yes
Proximity Reader Power Output Polatity and Over Current Protected Screw Terminals
Proximity Reader Interface Weigand 26 to 32 Bit (Auto Detect) Interface
Valid Reader Data Indication Yes - Status LED
Wall or Panel Mounting Clip Yes
LAN-INT Arch1
